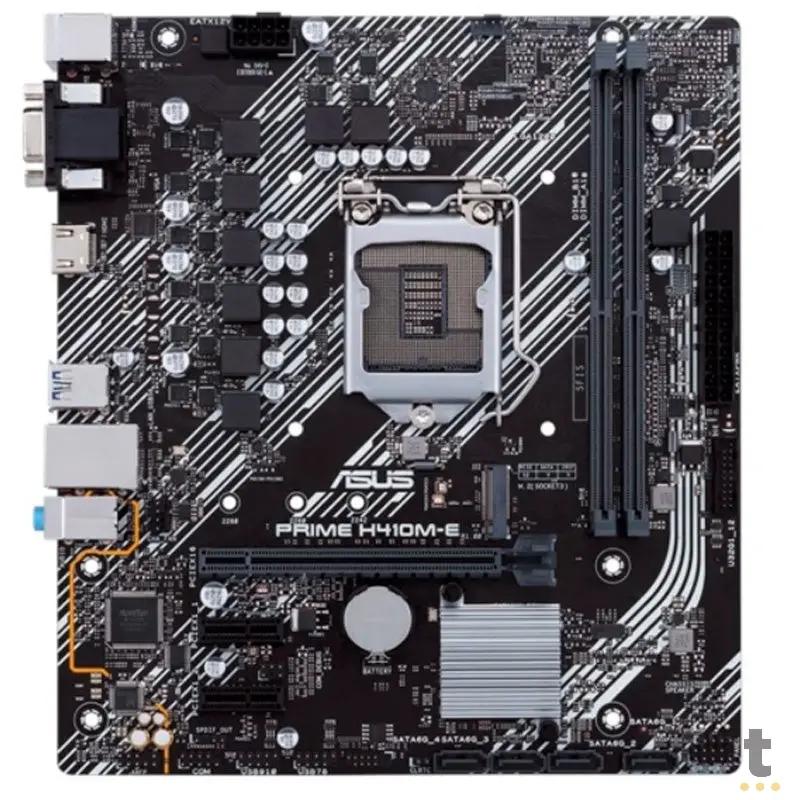

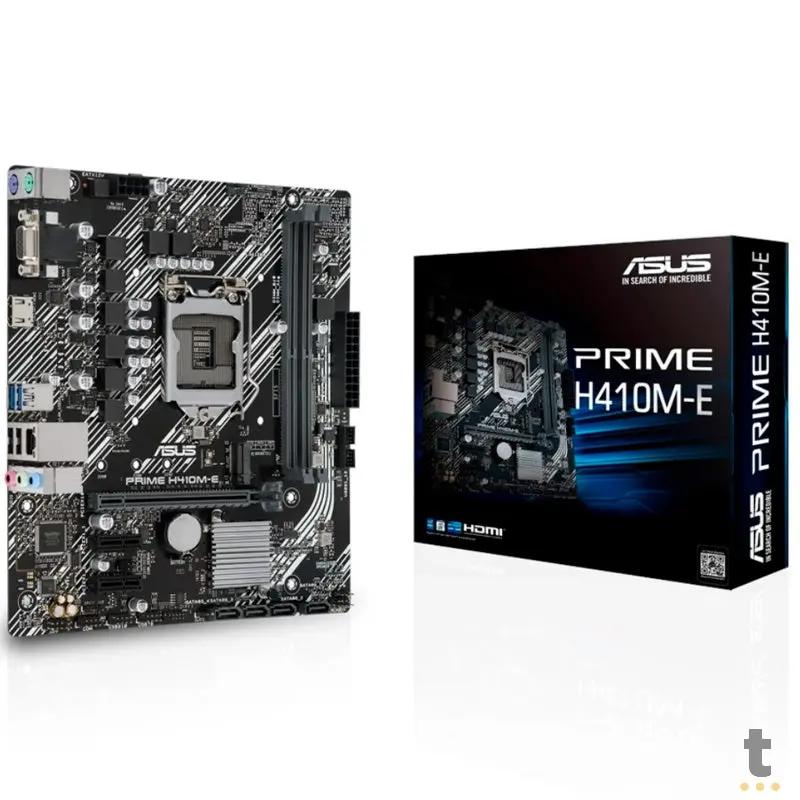

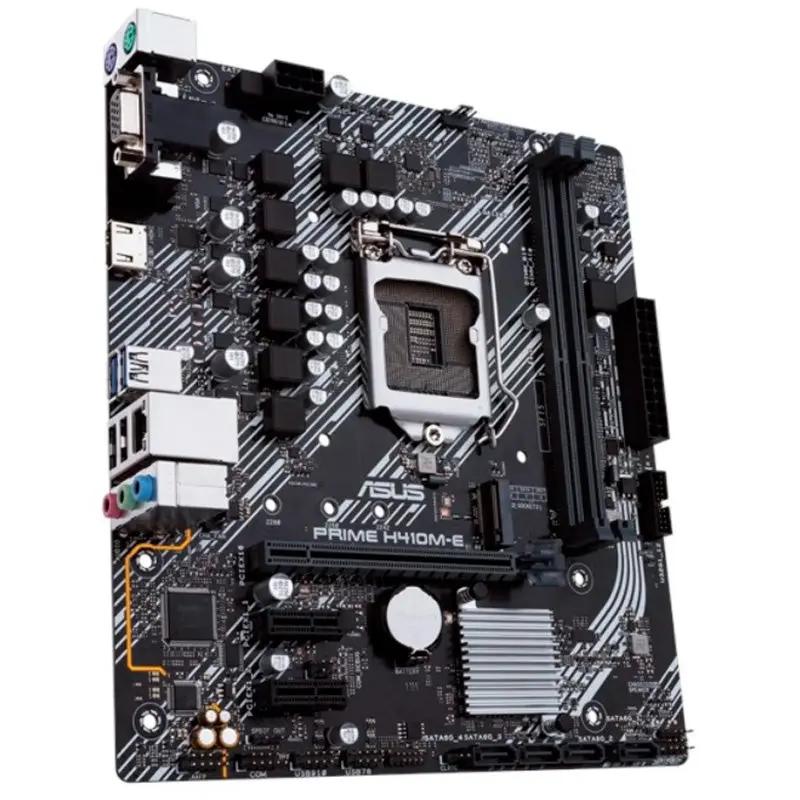

Placa Mae Asus Prime H410M-e Lga 1200 Ddr4 2933mhz Hdmi M2. Usb 3.1 (10a Geração)

Características:

Processador:

-Suporta Intel® Socket 1200 10th Gen Intel® Core™, Pentium® Gold e Celeron®

-Suporta Intel® 14 nm CPU

-Suporta Intel® Turbo Boost Technology 2.0 e Intel® Turbo Boost Max Technology 3.0

Chipset:

-Intel® H410

Memória RAM:

-2 x DIMM socket suporta até 64 GB

-Suporta os seguintes módulos de memória DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, -Un-buffered

-Arquitetura de memória Dual Channel

-Suporta Intel® Extreme Memory Profile (XMP)

-OptiMem

Slots de Expansão:

Processador Intel® 10th Gen:

-1 x PCIe 3.0 x16 (x16 mode)

Intel® H410

-2 x PCIe 3.0 x1

Armazenamento:

-1 x M.2 slots and 4 x SATA 6Gb/s

Intel® H410 Chipset:

-1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

-4 x SATA 6Gb/s port(s)

LAN:

-Realtek® RTL8111H

Áudio:

-Realtek ALC887 7.1-Channel High Definition Audio CODEC

Portas USB:

Traseiras (Total 4)

-2 x USB 3.2 Gen 1 port(s) (2 x Type-A)

-2 x USB 2.0 port(s) (2 x Type-A)

Frontais (Total 6)

-2 x USB 3.2 Gen 1 port(s)

-4 x USB 2.0 port(s)

Conectores I/O:

-1 x CPU Fan

-1 x Chassis Fan

-1 x USB 3.2 Gen 1(up to 5Gbps) support(s) additional 2 USB 3.2 Gen 1 port(s)

-2 x USB 2.0 support(s) additional 4 USB 2.0 port(s)

-1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

-1 x COM port(s)

-4 x SATA 6Gb/s

-1 x S/PDIF out header(s)

-1 x 24-pin EATX Power

-1 x 8-pin EATX 12V Power

-1 x Front panel audio (AAFP)

-1 x Clear CMOS jumper(s)

-1 x System panel

-1 x Speaker

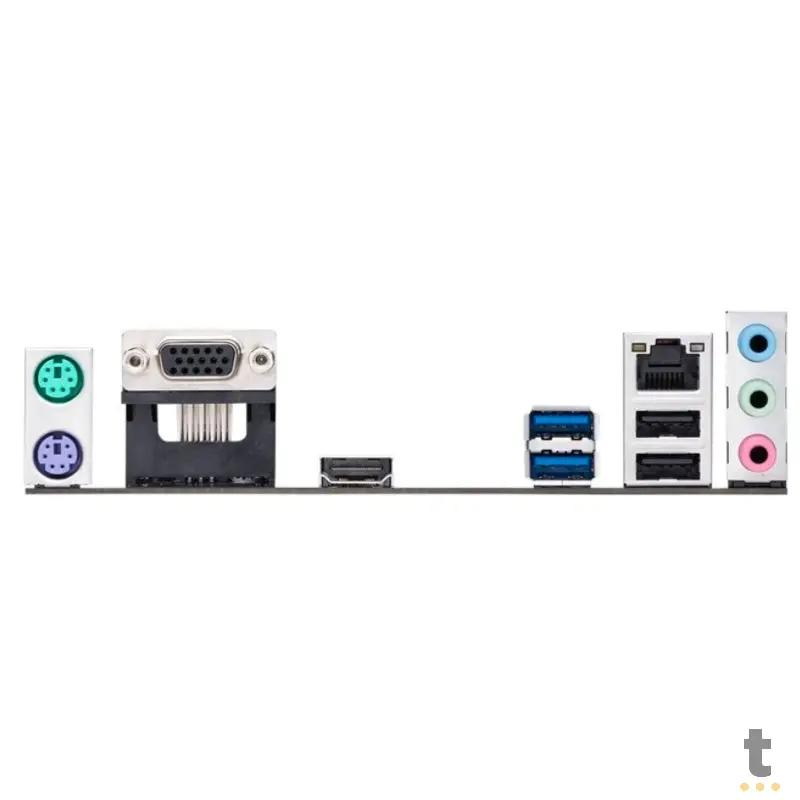

Portas Painel Traseiro:

-1 x PS/2 keyboard (purple)

-1 x PS/2 mouse (green)

-1 x D-Sub

-1 x HDMI

-1 x LAN (RJ45) port(s)

-2 x USB 3.2 Gen 1 Type-A

-2 x USB 2.0

-3 x Audio jack(s)

Dimensões:

-Formato mATX , 22.6 cm x 20.3 cm
