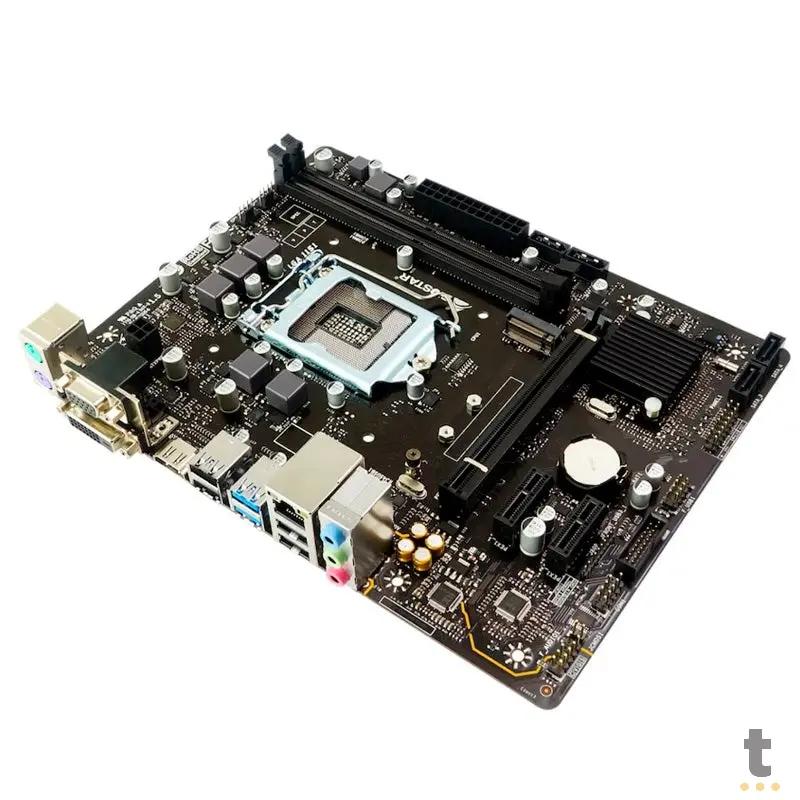

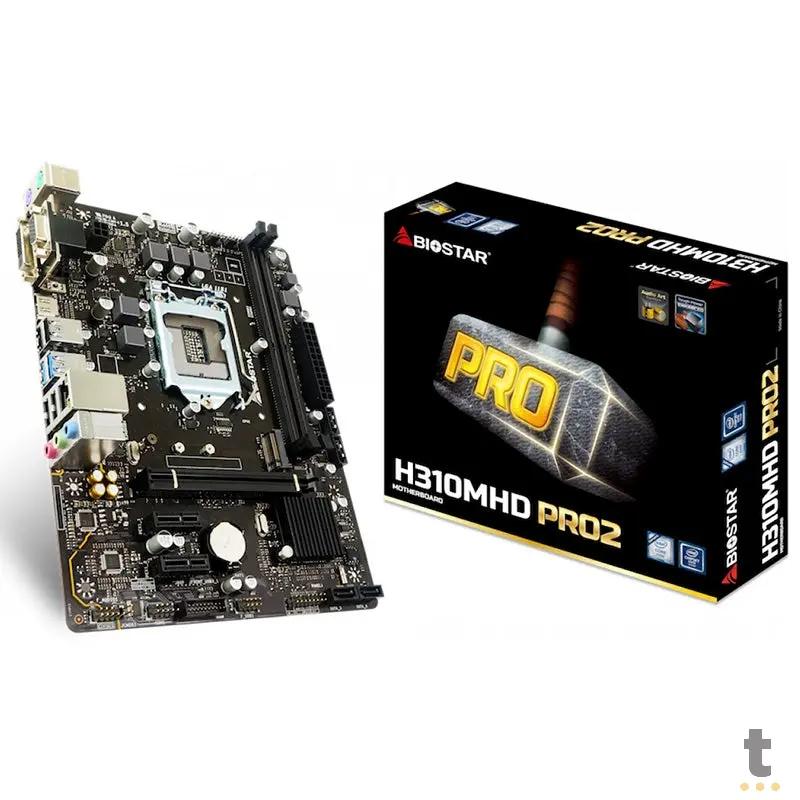

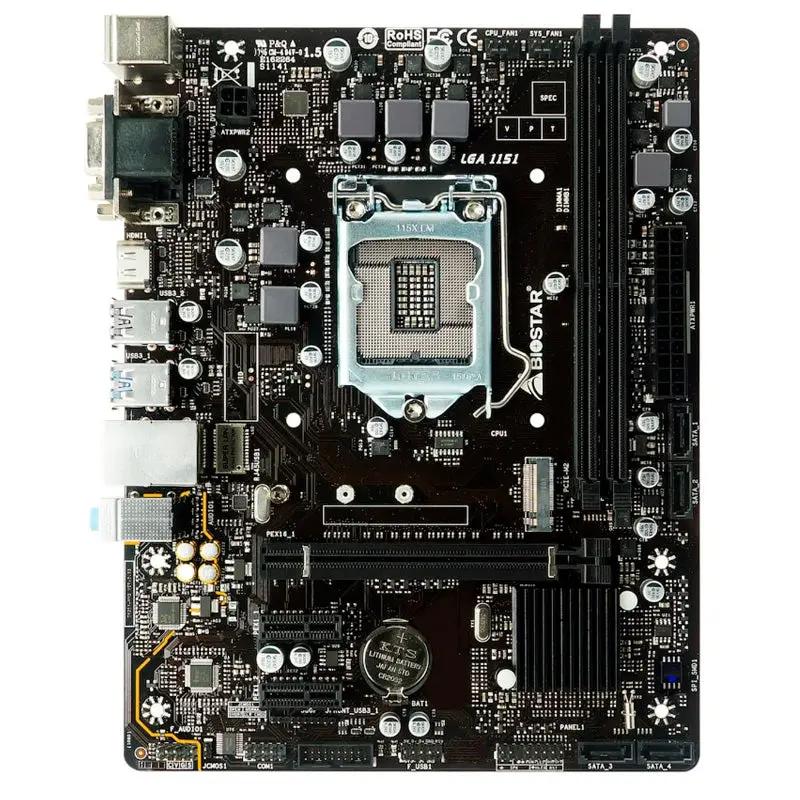

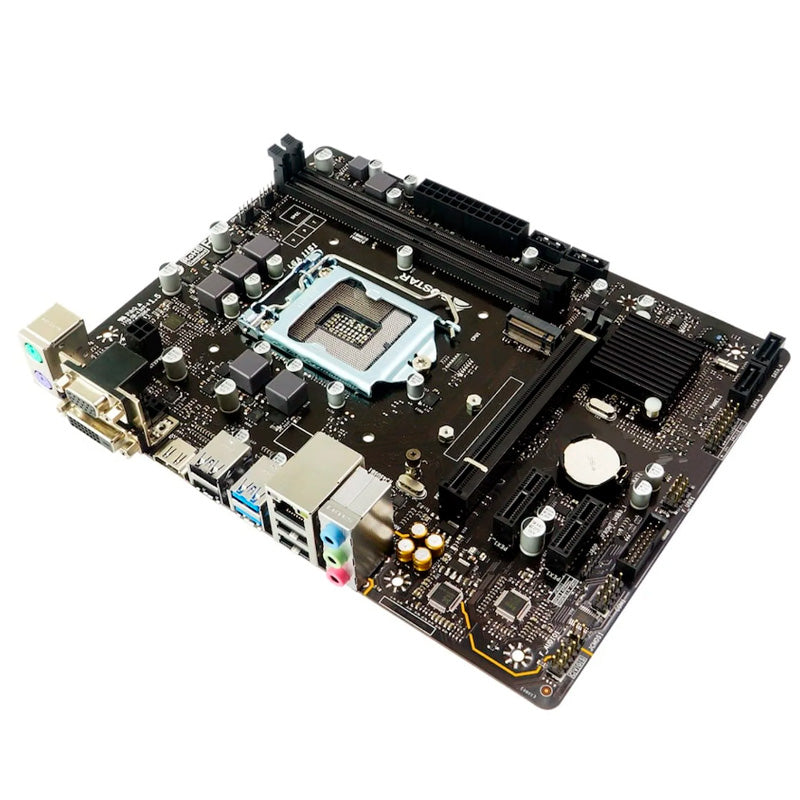

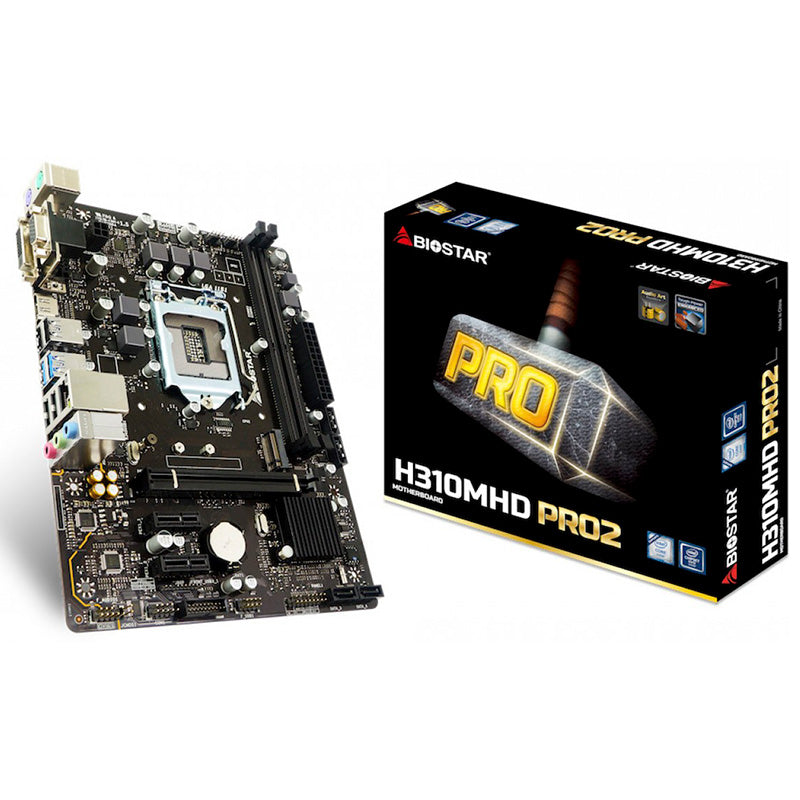

Placa Mae Biostar H310 Mhd Pro2 Intel Ddr4 Hdmi Vga Socket 1151 (8a E 9a Ger Intel)

Características:

Marca:

-Biostar

Modelo:

-H310MHD PRO2 Ver. 6.x

Especificações Técnicas:

Processadores Suportados:
-9th Gen Intel® Core™ i9 LGA 1151 Processor
-9th Gen Intel® Core™ i7 LGA 1151 Processor
-9th Gen Intel® Core™ i5 LGA 1151 Processor
-9th Gen Intel® Core™ i3 LGA 1151 Processor
-8th Gen Intel® Core™ i7 LGA 1151 Processor
-8th Gen Intel® Core™ i5 LGA 1151 Processor
-8th Gen Intel® Core™ i3 LGA 1151 Processor
-8th Gen Intel® Pentium® LGA 1151 Processor
-8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt

Chipset:
-Intel H310

Memória:
-Suporta Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
-2 x DDR4 DIMM Slot de memória
máx. Suporta até 32GB de memória

Slots de Expansão:
-1 x PCI-E 3.0 x16 Slot
-2 x PCI-E 2.0 x1 Slots

Armazenamento:
-6 x conector SATA3
-1 x M.2 Key M 32Gb/s Connector: Supports PCI-E, SATA SSD & Intel® Optane Technology

Portas USB:
-4 x USB 3.1 Gen1 Ports
-2 x USB 2.0 Ports
-1 x USB 3.1 Cabeçalho Gen1
-2 x Porta USB 2.0
-2 x USB 2.0 Header

Áudio:
-Realtek ALC887
-Suporte de áudio HD de 8 canais HD Áudio

LAN (rede):
-Realtek RTL8111H - 10/100/1000Mb/s Controller

Conectores internos:
-1 x USB 3.1 Gen1 Header (each header support 2 USB 3.1(Gen1) ports)
-1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
-4 x SATA3 6Gb/s Connectors
-1 x Front Audio Header
-1 x Front Panel Header
-1 x CPU Fan Connector
-1 x System Fan Connector
-1 x 4-Pin Power Connector
-1 x 24-Pin Power Connector
-1 x Clear CMOS Header
-1 x COM Port Header

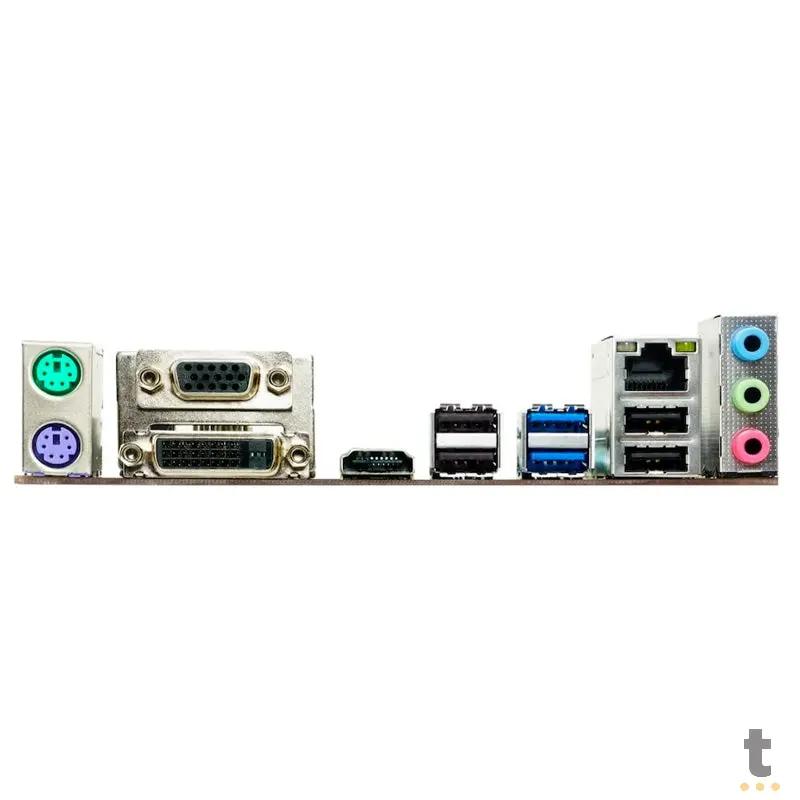

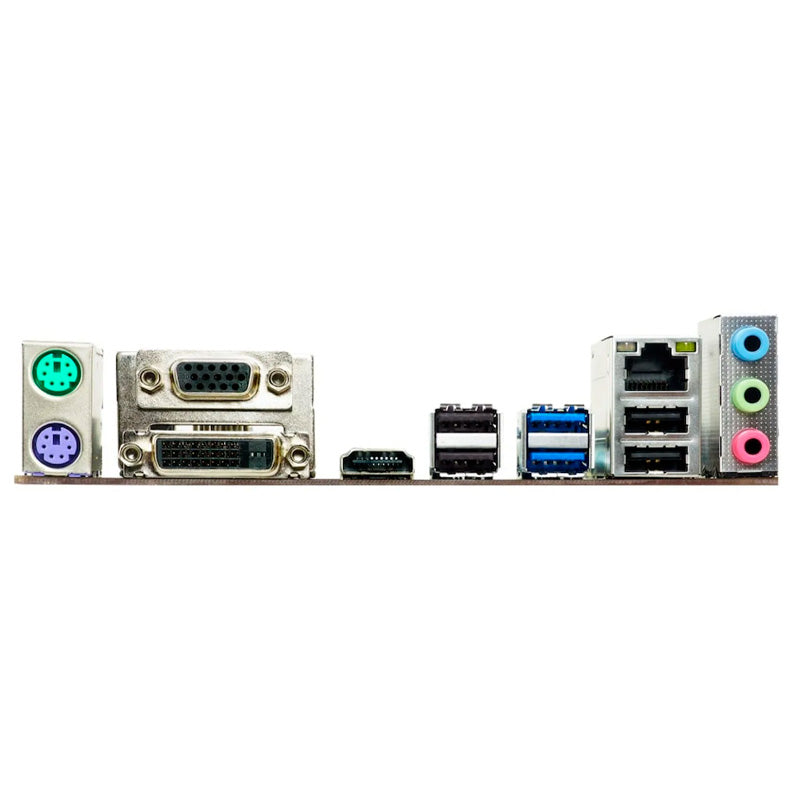

Portas traseiras:
-1 x PS/2 Mouse
-1 x PS/2 Keyboard
-2 x USB 3.1 Gen1 Ports
-4 x USB 2.0 Ports
-1 x HDMI Connector, resoltuion up to 4096*2160@24Hz
-1 x DVI-D Connector, resolution up to 1920*1200@60Hz
-1 x VGA Port, resolution up to 1920*1200@60Hz
-1 x LAN port
-3 x Audio Jacks

Dimensões:
-Formato Micro ATX (22,8 cm x 17,7 cm)

Acessórios Inclusos:
-2 x SATA Cable
-1 x I/O Shield
-1 x DVD Driver
-1 x Quick Guide
